MAGGUARD-SII
- Category
- Ferromagnetic Material Detector for MRI Safety
- Technology
- Ultra-sensitive magnetic sensor system
For your MRI Safety solution
-
Reduce risks of MRI apparatus adsorption accidents
-
Reduce the burden on healthcare professionals
-
Detects ferromagnetic materials that are difficult to distinguish
Product features
Equipped with an ultra-sensitive magnetic sensor system capable of detecting even minute changes in magnetic fields
Equipped with an ultra-sensitive magnetic sensor system developed by Fujidenolo. Even in MRI inspection environments with high magnetic levels, stable detection is achieved from minute signal changes such as hairpins to large magnetic objects such as oxygen cylinders.
AI learning function cancels magnetic noise
MAGGUARD-SⅡ learns the magnetic environment around the device and patterns of such magnetic noise, and performs magnetic noise cancellation to reduce faults alarm while detecting ferromagnetic materials to prevent from bringing into an MRI room.
Unit location can easily be changed
It is difficult to predict the suitable place for FMD before MRI installation.
There may be residual magnetic field from MRI, but if the FMD is already built into a wall or at the periphery of MRI room door, may need to lower the sensitivity of the unit or have someone come and uninstall the unit to replace somewhere the residual magnetic field from the MRI does not affect much.
Because Magguard-SⅡ does not require installation work, it is designed to support those facilities easily change the location of the system.
The system will evaluate the magnetic environment and tell you the score (100 to 0, higher scored location is preferred to place the unit, 0 means the unit should not be placed at the location). You can move the system and find the most suitable and operatable location for better ferromagnetic material detection outcome all for MRI Safety.
Product Specifications
-
DH-M105
-
MAGGUARD-SⅡ, Ferromagnetic Material Detector for MRI Safety, Stand model
-
2m (*1)
-
Detection sensitivity / Alarm volume
-
LEDs on main body: Color-coded lighting of ferromagnetic detection location)
LCD on foot part: Surrounded magnetic noise level
LED on foot part: On (sensing) / Motion sensor status -
100-240V AC adapter
-
5Ｗ
-
Height 1840 x Width 540 x Depth 460 (mm)
-
Approx. 13.6 kg (main unit only)
-
-
Applications for PCs and tablets (*2)
-
Detection mode selection / Detection sensitivity setting / Interface setting / Viewing detection log / System update
-
OS: Windows 10 64bit(*3) / CPU: IntelⓇ Core™ i3 series(*4) or higher ver. / Min. memory requirement: 4GB
-
*1 The detection distance of 2.0m refers to the distance of a medical oxygen cylinder(3.4L type).
-
*2 The application can be downloaded from the USB memory included with the product. Application contents and display screens are subject to change without notice.
-
*3 Windows is a registered trademark of Microsoft Corporation in the United States and other countries.
-
*4 Intel and Intel Core are registered trademarks of Intel Corporation in the United States and other countries.
-
-
DH-MP102
-
MatSwitch for MAGGUARD
-
Pressure sensor
-
Width 58 x Depth 71 x Thickness 0.2 (cm)
-
Approx. 0.5 kg

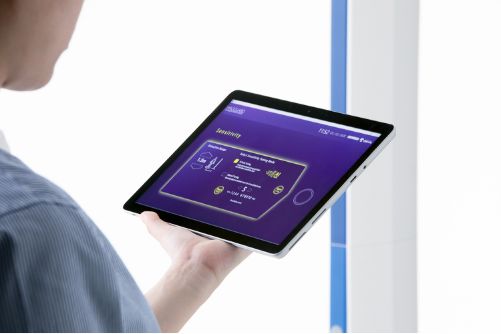

MAGGUARD Dashboard application for operational convenience
The Dashboard application is developed to switch MAGGUARD’s detection modes (screening or gatekeeping) and to adjust the sensor sensitivity. Settings can be easily controlled to suit your preference.
For products and technology inquiries, please contact us.
